PCB Assembly Capabilities
Types of Assembly | THD (Thru-Hole Device) SMT (Surface-Mount Technology) SMT & THD mixed 2 sided SMT and THD assembly |
| Order quantity | 1 to 10,000 boards |
Components | Passives parts, smallest size 0201 Fine pitch to 8 Mils BGA, uBGA, QFN,POP and Leadless chips Connectors and terminals |
Component Package | Reels Cut tape Tube and tray Loose parts and bulk |
| Board dimensions | Smallest size: 0.2″ x 0.2″ Largest size: 15″ x 20″ |
Board shape | Rectangular Round Slots and Cut outs Complex and Irregular |
| Board type | Rigid FR-4 Rigid-Flex boards |
| Assembly process | Leaded process Lead-Free (RoHS) |
Design file format | Gerber RS-274X BOM (Bill of Materials) (.xls, .csv, . xlsx) Centroid (Pick-N-Place/XY file) |
Sales and support | Emails Phone calls Web online quotation for PCB and assembly |

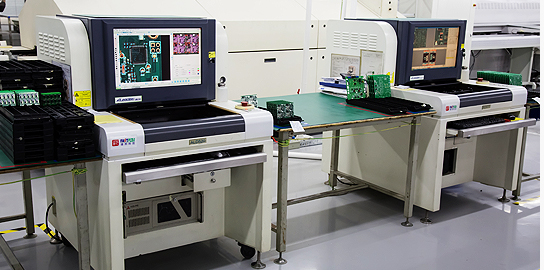

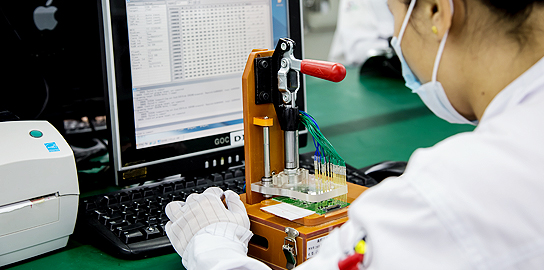

Electrical testing | X-ray Inspection AOI (Automated Optical Inspection) Functional tsting |
| Oven profile | Standard Custom |
| Turnaround time | 1-5 days for only PCB assembly 10-16 days for turnkey PCB assembly |
